Select … From … …

Relational model versus Semantic arrays dml

Cross joins combine data from multiple tables/views in a new view with the Cartesian Product of the tables/views mentioned in the FROM part.

A cross join can be defined as an Inner join without join condition. The following SQL Statement will make the Cartesian Product of the Apartment and Building tables.

Select Apartment.Id, Apartment.Street, Apartment.Number, Apartment.ZipCode , Apartment.Town, Building.ConstructionYear, Building.Footprint
From Apartment, Building

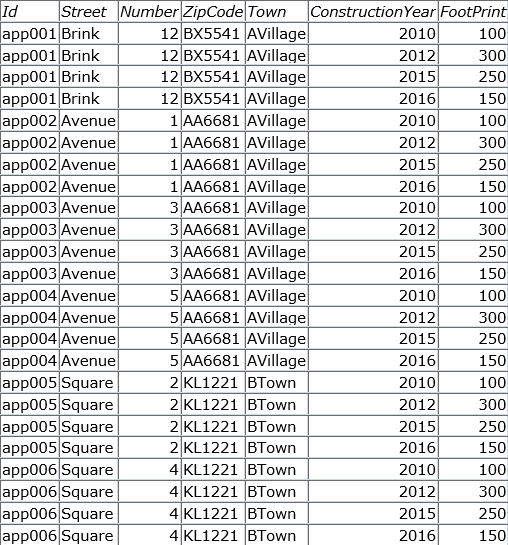

resulting in the following data:

The first 5 attributes result from the Apartment table, the last 2 attributes from the Building table.

GeoDMS

The resulting domain unit in the GeoDMS of an cross join SQL statement can be configured with the combine function, see the example:

Example

  unit<uint32> CartesianProduct := combine(src/Appartment,src/Building)
  {
    attribute<string> AppartmentId  := src/Appartment/Id[nr_1];
    attribute<string> Street        := src/Appartment/Street[nr_1];
    attribute<uint32> Number        := src/Appartment/Number[nr_1];
    attribute<string> ZipCode       := src/Appartment/ZipCode[nr_1];
    attribute<string> Town          := src/Appartment/Town[nr_1];

    attribute<units/Year> ConstructionYear := src/Building/ConstructionYear[nr_2];
    attribute<units/m2>   Footprint        := src/Building/Footprint[nr_2];
 }
